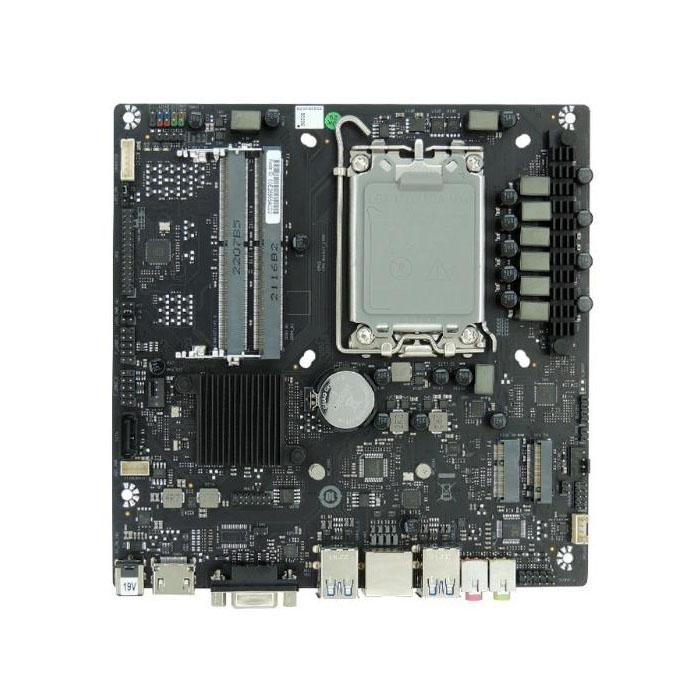

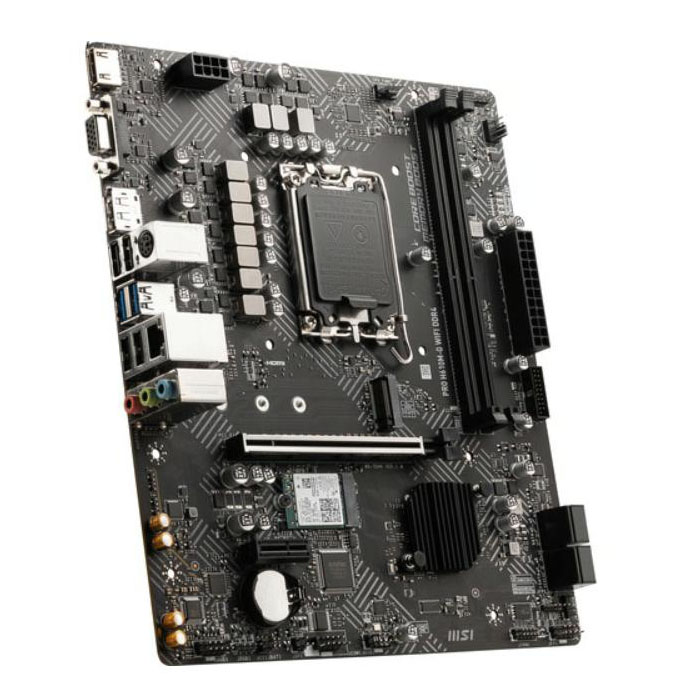

X86 motherboard-INTEL H610 Board

YCTECH producti industrialis imperium in tabula evolutionis includit industrialis imperium in tabula programmatis programmatis, upgrade programmatis schematici, consilium PCB, PCB productio et PCBA processus in orientali Sinarum ora sita est. Societas nostra consilia, enucleat et artificia X86 motherboard-INTEL H610 tabula. Intel® Pentium LGA1700 pro 12th 13th Gen Intel® Core, Pentium® Aurum et Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 et Intel® Turbo Boost Max Technology 3.0**

* CPU tantum support usque ad 65W

*Refer ad www.asus.com pro CPU subsidium album.

**Intel® Turbo Boost Max Technologiae 3.0 subsidium pendet in CPU generibus.

chipset

Intel® H610 Chipset

Memoria

2 x SO-DIMM, MAX. 64GB, DDR4 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-ffered Memoria*

Dual channel memoriae architecturae

Extremae Memoriae Profile subsidia Intel® (XMP)

*Actualis Memoria notitia rate subsidium a CPU generibus et modulorum DRAM dependet, pro maiori informatione ad www.asus.com refertur ad Memoriam QVL (Qualified Vendors Lists).

graphics card

1 x DisplayPort**

1 x HDMI® portum***

1 x LVDS connector

* Graphics specificationes inter CPU genera variari possunt.

** Adstipulatur max. 4K@60Hz de quibus in DisplayPort 1.4.

*** subsidia 4K@60Hz de quibus in HDMI 2.1.

repono fabrica interface

Summa subsidia 1 x m.2 socors et 2 x DIABOLUS 6Gb/s portubus

Intel® 12th Gen Processors

- 1 x M.2 socors (Key M), type 2260/2280 (sustentat Plu 4.0 x4 & SATA modos)

Intel® H610 Chipset

- 2 x SATA 6.0 Gb/s port

Interrete munus

1 x Realtek 1Gb Ethernet

ASUS Languard

USB interface

Tergo USB (Total IV p)

2 x USB 3.2 Gen 2 portus (2 x Type-A)

2 x USB 2.0 portus

Ante USB (Summa VII port)

1 x USB 3.2 Gen 1 header 2 USB 3.2 Gen 1 port

2 x USB 2.0 capitis capitis support additional 4 USB 2.0 p

1 x USB 2.0 header subsidia additional 1 USB 2.0 port

sonus effectus

Realtek 7.1 Circumdate Maximum Definitio Audio Codec

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to playback 24-Bit/192 kHz "

* A chassis cum HD audio moduli in fronte tabella requiritur ad 7.1 Surround Sound audio output support.

Tergo panel I / O fabrica connexiones

2 x USB 3.2 Gen 2 port

2 x USB 2.0 portus

1 x DisplayPort

1 x HDMI® port

I x Realtek 1Gb Aer portum

2 x Audio jacks

I x DC Power Connector (Support 19V)

Inaedificata I / O fabrica interface

Fan et Refrigerium related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Virtus cognata

1 x 2-pin + 19V Power connector

1 x SATA potentia iungo

Repono related

1 x M.2 socors (Key M)

2 x DIABOLUS 6Gb/s portubus

USB

1 x USB 3.2 Gen 1 header 2 USB 3.2 Gen 1 port

2 x USB 2.0 header subsidia additional 4 USB 2.0 p

1 x USB 2.0 header subsidia additional 1 USB 2.0 p

AIO Ratio related

1 x 2-pin interna DC power connector

1 x Stereo speaker connector

1 x DMIC header

Propono tabula plana related

1 x Backlight inverter voltage electionis header

1 x FPD splendor header

1 x Panel voltage selection header

1 x Panel off header

Miscellaneous

1 x Serena CMOS header

I x Chassis Intrude header

1 x COM Port header

1 x COM debug header

1 x Front Panel Audio header (AAFP)

1 x LVDS connector

1 x M.2 socors (Key E)

1 x Orator header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Bios munus

128 Mb Flash ROM, UEFI AMI BIOS

procuratio munus

WOL by PME, PXE

Sarcina Contents

cables

2 x SATA 6Gb/s cables

1 x DIABOLUS potentia cable

Miscellaneous

2 x I / O ancilia

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User dux

Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

motherboard magnitudine

Tenues Mini-ITX Forma Factor

6.7" x 6.7" (17.0cm x 17.0cm)
